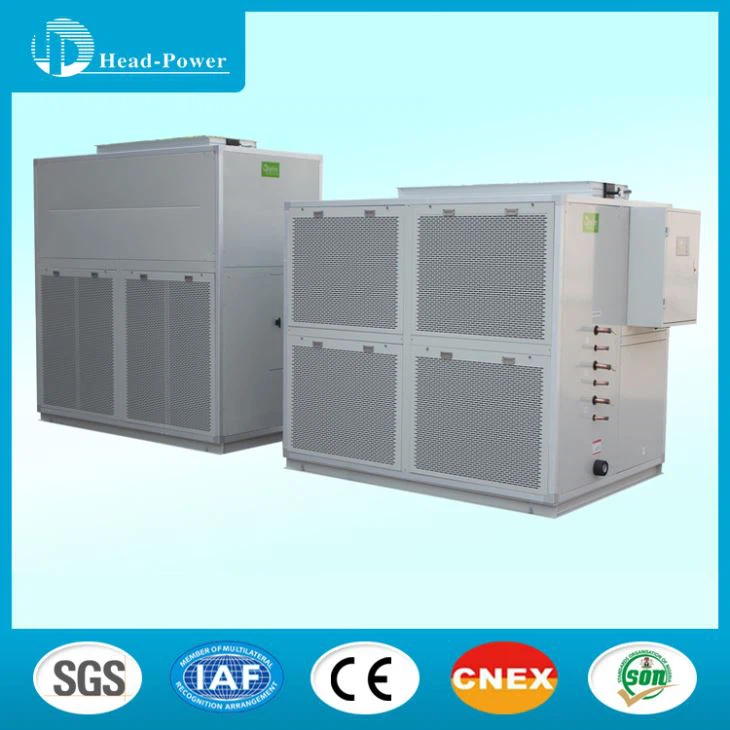

Air Cooled Split Packaged Unit Heating

Air Cooled Split Packaged Unit Cooling. The air conditioning system controls and regulates the indoor air environment. It is a more advanced ventilation system.The main task is to heat, cool, humidify, dry and filter the air.The air-conditioning system consists of four basic parts: air treatment, air transportation, air distribution and conditioning system

Air Cooled Split Packaged Unit Cooling system air conditioning system controls and regulates the indoor air environment. It is a more advanced ventilation system.

Air Cooled Split Packaged Unit Heating.Air Cooled Split Packaged Unit Cooling system main task is to heat, cool, humidify, dry and filter the air.

The air-conditioning system consists of four basic parts: air treatment, air transportation, air distribution and conditioning system

Ducted Type Air Conditioner(Ceiling mounted type)
Model	HAL36(H)	HAD40(H)	HAD50(H)	HAD60(H)
Unit performance	Cooling capacity	kw	93.6	104	130	156
Heating capacity	kw	98	110	136	162
Electric heating	kw	30	32	36	50
Air flow	m3/h	19500	20500	25500	27000
External static pressure	Pa	260	300	340	350
Power Supply	380V/3N50Hz
Refrigerant	Type	R22/R407C/R410A/R134A
Volume control	expansion valve/capillary tube
Charge	kg	103	102 plus 5	104	105
Compressor	Type	flexible hermetic scroll compressor
Power	kw	93	93 plus 3.75	94	95
Evaporator	Type	copper tube with aluminium fin
Fin type	Slotted-type two-way aluminum fin/honeycomb type aluminum fin
Indoor unit	Fan	Type	centrifugal type
Driving method	belt-drive
Power	kw	5.5	5.5	7.5	11
Unit Dimension	L	mm	2100	2200	2400	2550
W	mm	1000	1000	1300	1500
H	mm	2200	2200	2250	2400
Weight	kg	580	630	700	815
Noise level	dB/(A)	<>	<>	<>	<>
Outdoor unit	Compressor	Type	Hermetic Scroll
Power	kw	93	93 plus 3.75	94	95
Condenser	Type	tube with fin
Fin type	Slotted-type two-way aluminum fin
Blower	Type	ultra-low noise axial type
Driving method	direct-drive
Power	kw	1.52	0.753	1.13	1.14
Unit Dimension	L	mm	2300	2800	3000	3000
W	mm	1100	1100	1100	1100
H	mm	1400	1500	1500	1600
Weight	kg	860	920	1360	1450
Noise level	dB(A)	75	76	77	78
Connecting tubes	Refrigerant gas tube	Size	Ф28	Ф283 plus Ф19.1	Ф28	Ф28
Quantity	3	1	4	5
Refrigerant liquid tube	Size	Ф15.9	Ф15.93 plus Ф12.7	Ф15.9	Ф15.9
Quantity	3	1	4	5
Connection method	flare opening	welding plus flare opening
